Brake unit BCS

产品编号：

1133004343901573120

所属分类：

Brake unit series

  • Product description
  • Product features
  • Technical specifications
  • Product size

  • The function of BCS series braking unit products is to consume the regenerative energy generated by the motor during deceleration in the form of heat energy on the braking resistor to generate sufficient braking torque, so as to improve the braking performance of the frequency converter and shorten the braking time of the frequency converter.

  • Product characteristics

    1. Economy: the product has high cost performance ratio and complete specifications, covering single machine economy type and parallel machine universal type, reducing the use cost. Its quality is comparable to that of similar imported products.
    2. Versatility: Multi gear adjustable chopper voltage can be applied to low-voltage frequency converters of all brands. For special design, ordinary resistance can be used, and non inductive resistance is not necessary.
    3. Reliability: It has IGBT overheat, overcurrent and short circuit protection functions, which can prevent potential safety hazards caused by IGBT breakdown resulting in long-term load operation of the braking resistor.
    4. Strong overload capacity: the core components are imported to improve the working junction temperature of the braking unit, so as to enhance the overload capacity of the braking unit.
    5. Double absorption circuit: the double absorption circuit is adopted to enable IGBT to more effectively suppress dv/dt, so as to provide more safety protection for the brake unit, frequency converter and other equipment in the main control system.
    6. Strong anti-interference capability: the advanced technology of circuit wiring layout is adopted to reduce the circuit inductance, so as to improve the anti-interference capability of the braking unit.
    7. Response time and noise reduction: The response time is less than 1mS, there are multiple noise filtering algorithms, and the whole process of noise filtering will not pollute the power grid and interfere with other equipment.
    8. Small size: compared with traditional products, innovative integrated circuit technology makes the size more compact and beautiful, saving installation space.
    9. Humanized design: a. The panel adopts the spring screw connection technology to make the wiring operation more convenient. b. The operation can be observed and understood through the indicator light without opening the panel.



    Product ldentification Code

    BCS  —  4 0          4          5 D M


    Product Type



    AC voltage level
    Code voltage

    4      AC400V

    ED10% adaptive converter power Code power

    45      45KW

    		 Stand alone High performance module



  • Product specification

    Single machine economy 2015D 2030D 2045D 4015D 4030D 4045D 4075D
    Single machine high-performance type           4045DM 4075DM 4090DM 4110DM 4160DM       6045DM 6110DM
    Parallel universal type                     4220M 4300M 4400M     6220M 11220M



    Technical specification

    Brake unit model - BCS AC200V~AC300V AC380V~AC460V
    2015 2030 4030 4045 4075 4090 4110 4160 4220 4300 4400 6045 6110 6220 11220
    Input and output characteristics Peak current (A) 50 75 50 75 100 150 150 200 300 450 600 75 200 300 200
    Rated current (A) 15 30 15 25 40 50 60 70 120 200 300 25 70 85 60
    Wiring (mm2) 4-6 6-8 4-6 4-6 6-8 8-10 8-16 8-16 16-36 25-50 25-50 4-6 8-16 16-36 8-16
    Minimum resistance: Ω 10 6.5 20 13.6 9.5 7 6.5 4 3 2.5 2 22 13 5 20
    Braking starting voltage (V) DC380V DC630/DC660/DC690V DC950/DC1000/DC1050
    /DC1100/DC1150V    		 DC/1800/
    1850/1900/
    1950/2000
    Maximum hysteresis error About 8V About16V About30V About50V
    Synchronizing signal ① Single economic type can not be combined; ② Parallel universal type, multiple parallel machines can be used, and the number of push discriminators shall not exceed 4 (if it exceeds the limit, a synchronization card shall be configured additionally).
    Power Supply DC Bus Voltage DC 243－400V DC 460-800V DC850-1200V DC1500-2000V
    RS terminal external power supply   External 220V power supply
    protect heatsink OT Temperature switch+85 ℃
    Fault output RELAY contact 0.6A125VAC/2A30VDC (T1, T2)
    Working conditions of radiator fan The fan works when the temperature rise of the braking unit and energy absorption resistance plate exceeds+45 ℃, and stops when the temperature rise is below+45 ℃
    Indicating function Power indication The DC bus input terminal on the PCB has voltage input (greater than 80V), and the red power on "POWER" indicator is on
    Running indication When the brake unit is working, the green "BRAKE" indicator is on
    environment condition ambient temperature -10 ℃~+40 ℃ (no freezing)
    Storage temperature -10℃~+50℃
    humidity 90% RH (no frost)
    Vibration 1G for 10~20HZ, 0.2G for 20~50HZ
    Mechanical structure Wall mounted IP20

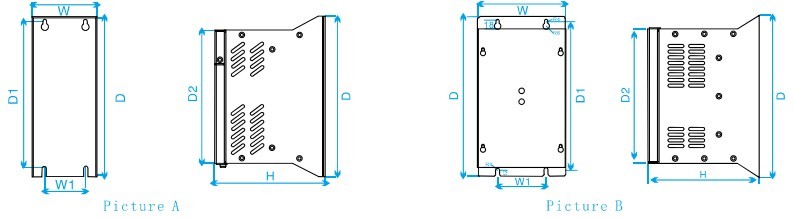

  • Product Size

    Product model Drawing No

    Rated current

    (A)

    Peak current

    (A)

    Minimum braking resistance

    （Ω）

    		 Dimension(±2mm) Installation hole gauge terminal

    wiring

    (mm²)

    weight

    (kg±10%)
    W D H W1 D1 D2
    BCS-2015D A 15 50 10 96 228 135 50 213 195 φ5 M4 4-6 1.8
    BCS-2030D 30 75 6.5 96 228 135 50 213 195 φ5 M4 6-8 1.8
    BCS-4030D 15 50 20 96 228 135 50 213 195 φ5 M4 4-6 1.8
    BCS-4045D 25 75 13.6 96 228 135 50 213 195 φ5 M4 4-6 1.8
    BCS-4075D 40 100 9.5 96 228 135 50 213 195 φ5 M4 6-8 1.8
    BCS-4045DM 25 75 13.6 103 215 158 78 200 185 φ5 M4 4-6 3
    BCS-4075DM 40 100 9.5 103 215 158 78 200 185 φ5 M4 4-6 3
    BCS-4090DM 50 150 7 103 215 158 78 200 185 φ5 M4 8-10 3
    BCS-4110DM 60 150 6.5 133 298 168 90 283 259 φ8 M8 8-16 3.8
    BCS-4160DM 70 200 4 133 298 168 90 283 259 φ8 M8 8-16 3.8
    BCS-4220M B 120 300 3 190 330 193 100 309 282 φ8 M8 16-36 7
    BCS-4300M 200 450 2.5 190 330 193 100 309 282 φ8 M8 25-50 7
    BCS-4400M 300 600 2 190 330 193 100 309 282 φ8 M8 25-50 7
    BCS-6045DM A 25 75 22 103 215 158 78 200 185 φ5 M4 4-6 3
    BCS-6110DM 70 200 13 133 298 168 90 283 259 φ8 M8 8-16 3.8
    BCS-6220M B 85 300 5 190 330 193 100 309 282 φ8 M8 16-36 7
    BCS-11220M 60 200 20 254 407 212 190 388   φ8 M8 16-36

    Note: Single economic type can not be used by multiple parallel machines. Please pay attention to the minimum resistance range when configuring resistance!

The function of BCS series braking unit products is to consume the regenerative energy generated by the motor during deceleration in the form of heat energy on the braking resistor to generate sufficient braking torque, so as to improve the braking performance of the frequency converter and shorten the braking time of the frequency converter.
