EMI three-phase output filter AFO

产品编号：

1133004300872208384

The EMI three-phase output filter has good interference suppression capability, and is placed at the output end of the frequency converter, which can effectively reduce the electromagnetic interference generated by the frequency converter.

所属分类：

EMI filter series

  • Product description
  • Product features
  • Technical specifications
  • Product size

  • AFO series three-phase output filter products have good interference suppression capability, which can effectively reduce the electromagnetic interference generated by the frequency converter when placed at the output end of the frequency converter.

  • Product characteristics

    1. High insertion loss
    2. Excellent EMI noise suppression capability
    3. Reduce bidirectional conducted interference between frequency converter and motor
    4. Rated voltage: 380/440VAC
    5. Operating frequency: 50/60HZ
    6. Test voltage: (1 minute) 1500VDC line to line 2500VDC line to ground
    7. Insulation resistance: line to ground 500VDC ≥ 1500M
    8. Temperature range: - 25 ℃~+85 ℃
    9. Product executive standard: IEC/EN 60939



    Product ldentification Code

    A F I  —  0010  —  2 B


    A three-phase AC

    D Single-phase communication

    SA three-phase four-wire

    AC FA four-quadrant

    		 wave filter I Input
    O Output

    Rated Current

    （A）



    Rated Voltage

    (2-AC400V)

    Filtering Level



    		 No default general
    G rail T terminal block (single-phase optional)



  • Product Application

    1. Three phase speed regulating motor drive, servo drive, frequency converter and inverter
    2. Energy conversion devices, such as machines and automation equipment
    3. Air conditioning equipment, elevator, power supply, UPS, injection molding machine
    4. Machine tool equipment, printing equipment, packaging equipment, drilling and grinding machines, textile equipment, etc

  • Circtit Diagrams

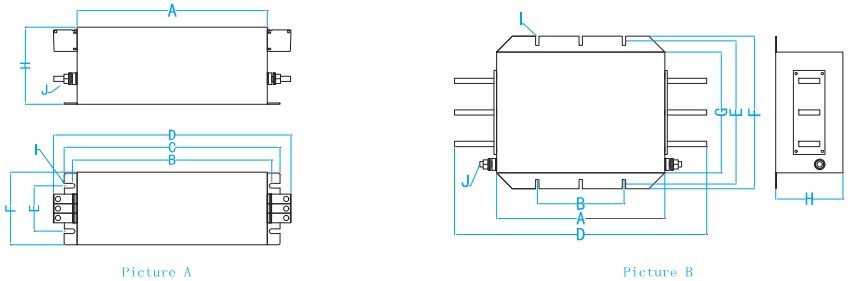

    Product Size



    Product model Drawing No

    Adaptive power

    (KW)

    Rated current

    (A)

    		 Size Dimension(±2mm)

    Weight

    （KG±10%）
    A B C D E F G H ΦI J
    AFO-0005-4B A 1.5 5 168 180 190 190 20 40 × 75 4.5 M4 0.8
    AFO-0010-4B 3.7 10 168 180 190 190 20 40 × 75 4.5 M4 1.2
    AFO-0020-4B 7.5 20 220 235 250 242 25 45 × 75 5.5 M4 1.3
    AFO-0036-4B 15 36 240 255 270 310 31 50 × 85 5.5 M4 1.5
    AFO-0050-4B 18.5 50 220 234 250 290 60 85 × 90 5.5 M6 2.3
    AFO-0065-4B 30 65 220 234 250 290 60 85 × 90 5.5 M6 3
    AFO-0080-4B 37 80 240 255 270 320 60 85 × 140 6.5 M8 5
    AFO-0100-4B 45 100 240 255 270 320 60 85 × 140 6.5 M8 5
    AFO-0130-4B 55 130 240 255 270 338 65 95 × 150 6.5 M8 5.5
    AFO-0150-4B 75 150 240 255 270 338 65 95 × 150 6.5 M8 5.5
    AFO-0200-4B 110 200 350 365 380 455 102 120 × 170 6.5 M8 6
    AFO-0250-4B B 132 250 200 100 × 300 195 220 170 90 6.5*9.5 M8 6
    AFO-0320-4B 160 320 200 100 × 300 195 220 170 90 6.5*9.5 M8 6.2
    AFO-0400-4B 220 400 210 105 × 315 245 260 230 128 6.5*10.5 M8 13
    AFO-0500-4B 250 500 210 105 × 315 245 260 230 128 6.5*10.5 M8 13
    AFO-0600-4B 315 600 210 105 × 315 245 260 230 128 6.5*10.5 M8 14
    AFO-0800-4B 400 800 320 165 × 445 245 260 230 128 6.5*10.5 M8 14
    AFO-0900-4B 450 900 320 165 × 445 245 260 230 128 6.5*10.5 M8 24
    AFO-1000-4B 500 1000 320 165 × 445 245 260 230 128 6.5*10.5 M8 24
    AFO-1200-4B 630 1200 400 245 × 580 270 292 250 150 8.5*14 M12 26
    AFO-1600-4B 800 1600 400 245 × 580 270 292 250 150 8.5*14 M12 28



AFO series three-phase output filter products have good interference suppression capability, which can effectively reduce the electromagnetic interference generated by the frequency converter when placed at the output end of the frequency converter.
