Stainless steel resistance SOMR/SPMR

The stainless steel resistance products are reliable in use and have the characteristics of large capacity, high withstand voltage, corrosion resistance, vibration resistance, impact resistance, long service life, etc.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number：
Category：
Resistor series
Quantity
-
+
Stock:
1
Product description
Parameters
Product features
Technical specifications
Product size

SMR series stainless steel resistance products have reliable performance, and are characterized by large capacity, high withstand voltage, corrosion resistance, vibration resistance, impact resistance, non induction, no contact resistance, and long service life. It is mainly used for motor starting, braking and speed regulation.

Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

Product characteristics

1. Rated power range: single layer 5.6KW and 10KW, multiple layers can be stacked (single group ≤ 6 layers)
2. Product appearance structure is divided into indoor open type and outdoor protective type
3. Resistance range: 1 Ω - 1000 Ω
4. Voltage range: 220V-1140V
5. Dielectric strength: AC3000V 50Hz 1Min



Product Identification Code

SPMP  —  2KW / 20R


Product Type

SOMR

SPMR



Rated Power



Resistance Value(ohm)



Product Application

1. As a braking resistor, protect the frequency converter, servo, etc. from the harm of the regenerative electric energy of the motor
2. As resistive load in power electronic load test
3. Used as adjusting resistance and starting resistance in hoisting equipment

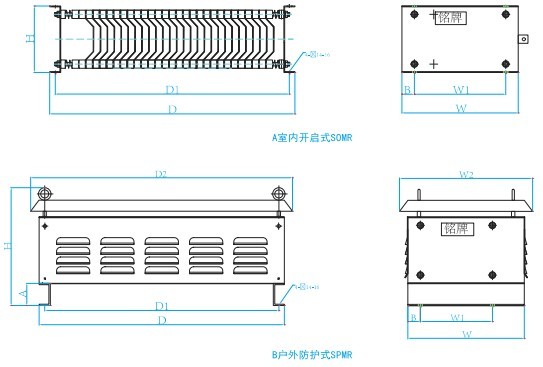

Product Size

Product model Dimension (± 2mm)

Weight

(kg±10%)
D W H D1 W1 D2 W2 A B
SOMR-5.6KW 645 375 240 605 260       40 16
SOMR-10KW 885 375 240 845 260       40 27
SPMR-5.6KW 645 420 425 605 260 705 480 100 40 24
SPMR-10KW 885 420 425 845 260 945 480 100 40 35
