DC reactor DSL

产品编号：

1133004268081139712

DC reactor used in DC circuit can reduce current pulsation and ensure continuous current flow when inductance reaches a certain value.

所属分类：

Reactor series

  • Product description
  • Product features
  • Technical specifications
  • Product size

  • DSL series DC reactors can reduce current ripple when used in DC circuits, and ensure continuous current flow when the inductance reaches a certain value. Improve the input current waveform distortion caused by capacitor filtering, reduce and prevent rectifier bridge damage and capacitor overheating caused by impulse current, improve the power factor, reduce the DC bus AC pulse, and limit the transient of grid voltage.

  • Product characteristics

    1. Rated working voltage: DC500V-DC1000V 50/60Hz
    2. Rated working current: 5A to 1600A@40 ℃;
    3. Dielectric strength: core winding 3000VAC/50Hz/5mA/10s without flying fox breakdown (factory test)
    4. Insulation resistance: core winding 1000VDC insulation resistance ≥ 100M Ω
    5. Reactor noise: less than 80dB (measured at 1m from the reactor)
    6. Protection grade: IP00
    7. Insulation grade: above F
    8. Maximum current: 1.5 * rated current, lasting for 60s
    9. Temperature rise: ≤ 85K
    10. Applicable standard: IEC60076; GB19212.1-2008;  GB19212.21-2007;  GB1094.6-2011



    Environmental conditions

    1. The altitude does not exceed 2000 meters
    2. Temperature resistance class F (155 ℃) or above
    3. The operating ambient temperature is - 25 ℃~+45 ℃, and the relative humidity is not more than 90%
    4. There is no harmful gas, inflammable and explosive materials around, and there should be good ventilation conditions



    Product ldentification Code

    DSL  —  0200  —  UIDA  —  EM33


    Product Type



    Current



    Structure and Material



    Inductance



  • Product Application

    1. Improve the input current waveform distortion caused by capacitive filtering;
    2. Reduce and prevent rectifier bridge damage and capacitor overheating caused by impact current;
    3. Improve power factor and reduce AC pulse of DC bus;
    4. Limiting the transient of grid voltage;
    5. Together with the capacitor connected in parallel, it can suppress or filter the ripple in DC to eliminate the adverse impact on the load.

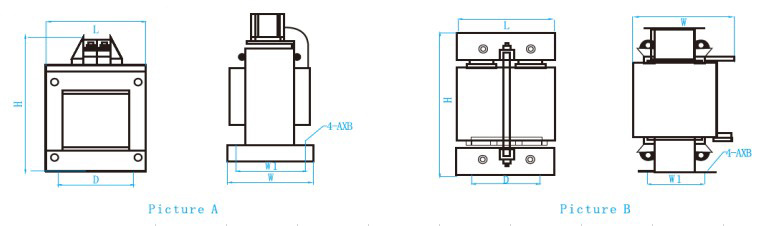

  • Product Size

    Product model Drawing No

    Adaptive power

    (KW)

    Rated current

    (A)

    Inductance

    （mH）

    		 Insulation class Size Dimension(±2mm)

    Weight

    （KG±10%）
    L W H D W1 A*B
    DSL-0010-EIDA-E6M3 A 3.7 10 6.3 F,H 104 100 135 85 80 6*11 3Kg
    DSL-0015-EIDA-E3M6 5.5 15 3.6 F,H 104 100 135 85 80 6*11 3Kg
    DSL-0020-EIDA-E2M7 7.5 20 2.7 F,H 104 100 135 85 80 6*11 3Kg
    DSL-0030-EIDA-E2M0 11 30 2 F,H 115 120 160 95 90 7*11 4.5Kg
    DSL-0040-EIDA-E1M5 15 40 1.5 F,H 115 120 160 95 90 7*11 4.5Kg
    DSL-0050-EIDA-E1M1 22 50 1.08 F,H 115 120 160 95 90 7*11 4.5Kg
    DSL-0065-EIDA-EM80 30 65 0.8 F,H 115 120 160 95 90 7*11 4.5Kg
    DSL-0080-EIDA-EM70 37 80 0.7 F,H 138 130 170 111 95 7*18 6Kg
    DSL-0100-EIDA-EM54 45 100 0.54 F,H 138 130 170 111 95 7*18 6Kg
    DSL-0120-EIDA-EM45 B 55 120 0.45 F,H 165 155 215 130 87 10*16 14Kg
    DSL-0160-UIDA-EM36 75 160 0.36 F,H 165 165 215 130 97 10*16 15Kg
    DSL-0200-UIDA-EM33 90 200 0.33 F,H 210 180 275 176 105 11*18 20Kg
    DSL-0250-UIDA-EM26 110 250 0.26 F,H 210 195 275 176 115 11*18 24Kg
    DSL-0300-UIDA-EM20 132 300 0.20  F,H 210 210 275 176 125 11*18 27Kg
    DSL-0350-UIDA-EM17 160 350 0.17 F,H 210 225 275 176 125 11*18 28Kg
    DSL-0450-UIDA-E90U 185 450 0.09 F,H 210 225 275 176 125 11*18 28Kg
    DSL-0500-UIDA-E60U 220 500 0.06 F,H 210 225 275 176 125 11*18 28Kg
    DSL-0650-UIDA-E50U 300 650 0.05 F,H 210 225 275 176 130 11*18 30Kg
    DSL-0800-UIDA-E50U 380/400 800 0.05 F,H 240 245 290 206 120 11*18 35Kg
    DSL-1000-UIDA-E40U 450 1000 0.04 F,H 270 260 325 224 132 12*20 48Kg
    DSL-1200-UIDA-E40U 550 1200 0.04 F,H 270 270 355 224 147 12*20 55Kg
    DSL-1600-UIDA-E30U 630 1600 0.03 F,H 310 315 350 230 162 12*20 68Kg



DSL series DC reactors can reduce current ripple when used in DC circuits, and ensure continuous current flow when the inductance reaches a certain value. Improve the input current waveform distortion caused by capacitor filtering, reduce and prevent rectifier bridge damage and capacitor overheating caused by impulse current, improve the power factor, reduce the DC bus AC pulse, and limit the transient of grid voltage.
